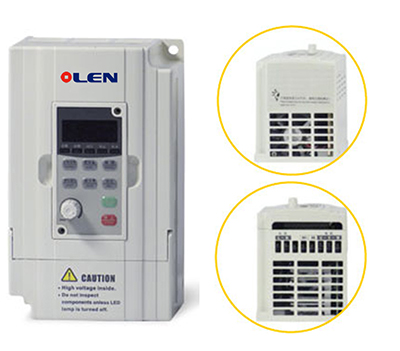

OD5M-0.4/0.75/1.5S2-1A
OD5M-0.75/1.5/2.2T4-1A
Oulun OD5M compact inverter is small in size and compact in structure;
It can run silently at 16kHz;
The operation panel is equipped with a frequency adjustment knob and is equipped with a standard RS485 communication port;
Built-in energy consumption braking transistor;
PID closed-loop control;
Simple PLC function;

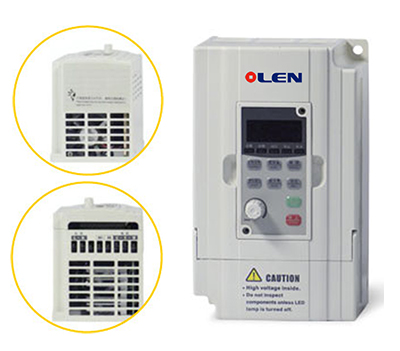

OD5M-2.2/3.7/5.5S2-1A
OD5M-3.7/5.5/7.5T4-1A
Oulun OD5M compact inverter is small in size and compact in structure;
It can run silently at 16kHz;
The operation panel is equipped with a frequency adjustment knob and is equipped with a standard RS485 communication port;
Built-in energy consumption braking transistor;
PID closed-loop control;
Simple PLC function;

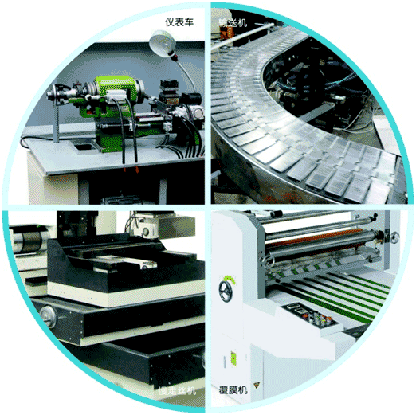

Main application industries
OD5M compact inverter is suitable for all kinds of fan and pump equipment, conveyor and handling machinery, woodworking machinery, various machine tools and processing equipment,
Such as: slow wire machine, instrument car, profile extrusion machine, film laminating machine, paper making and textile machinery.
installation
Ambient temperature -5℃~40℃, avoid high temperature and humidity, humidity less than 90% (no condensation).
Electromagnetic interference, stay away from interference sources.
Prevent the intrusion of water droplets, steam, dust, cotton wool, and fine metal powder, and prevent the intrusion of oil, salt, and corrosive gases.
It is forbidden to install in the environment containing flammable, explosive gas, liquid and solid.
Do not install air circuit breakers, contactors and related capacitors or varistor devices on the output side, otherwise it will cause inverter failure, jump protection or damage to components.
The inverter must use an independent power supply, avoid sharing the same power supply with the welding machine, etc., otherwise it will cause the protection or damage of the inverter.
In order to facilitate cooling and maintenance, the inverter must be installed vertically with sufficient space around to ensure smooth air circulation.
Non-combustible materials such as iron plates should be used for the installation wall, and the inverter must not be damaged due to vibration.
Multiple inverters are installed in the same cabinet. When installing up and down, pay attention to the distance, and add a diversion barrier in the middle.
store
Storage environment temperature range -20℃ to +65℃;
The relative humidity of the storage environment is in the range of 0% to 95% (no condensation), no dust, dry location;
The storage environment does not contain corrosive gases and liquids, so it is best to place them on a shelf and store them in proper packaging;
Long-term storage of the inverter will lead to deterioration of the electrolytic capacitor. If it needs to be stored for a long time, it must be energized once within 1 year, and the energization time should be at least 5 hours.
Input voltage must be slowed down with voltage regulator
Slowly increase to the rated voltage value.
